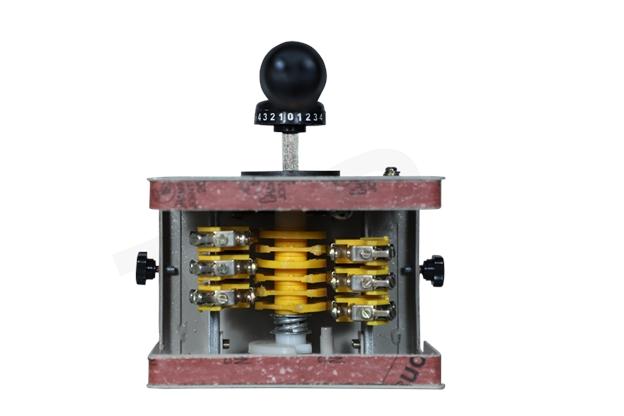

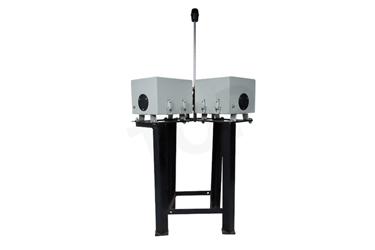

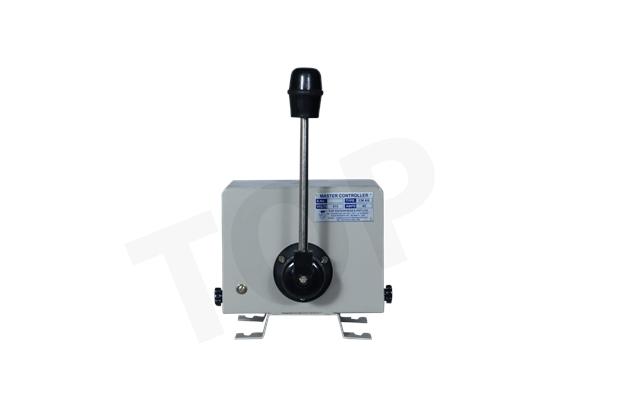

Master controller are used for remote operation of contractors equipment controlling E.O.T cranes & Rolling mills drives. The controllers are made in dust proof enclosure in IP-54 degree of protection, up to 6 notches either side with maximum 24 contacts as per desired sequence with spring return arrangements & dead man's handle arrangement are available. And master controllers are compact upto 4-0-4 step suitable for Hoists-Grab, CT-LT maximum contact 16 per motion with spring return arrangements.
|
Body Material:
|
Sheet Steel / Aluminium Die Cast
|
|
Degree of Protection:
|
IP-41/IP-54 Confirming to IS-13947(Part-1)1993
|
|
Mounting Position:
|
Horizontol / Vertical
|
|
Contact Material:
|
Silver Camium
|
|
Rated Voltage Insulation:
|
500 V.A.C.
|
|
Thermal Test Current:
|
40 Amps.
|
|
Cable Entries:
|
2x20 2x60 standard conduit
|
|
Frequency of Operation:
|
1000 switching per hour
|
|
Contacts:
|
Single / Double break
|
|
No. of Contacts :
|
24 maximum
|
|
No. of steps:
|
7-0-7 maximum
|
|
Optional:
|
Spring return / deadman's handle arrangement
|
